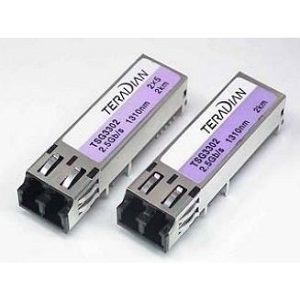

TSGG3XX

Fiber Optic Transceiver by Teradian
74 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Teradian.

The TSGG3XX from Teradian is a Fiber Optic Transceiver with Data Rate 2.488 Gbps, Wavelength 1588 to 1592 nm, Distance/Reach 40 km, Output Power -5 to 0 dB, Receiver Sensitivity -21 to -18 dBm. More details for TSGG3XX can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    TSGG3XX
  • Manufacturer
    Teradian
  • Description
    SDH/SONET 2.5Gpbs CWDM Transceiver

Applications

  • Applications
    CWDM applications, Intra-office and Inter-office SONET/ITU-T SDH, High-speed data links, Metropolitan Area Network

Connections & Interface

  • Connector
    LC

General Parameters

  • Data Rate
    2.488 Gbps
  • Wavelength
    1588 to 1592 nm
  • Distance/Reach
    40 km
  • Output Power
    -5 to 0 dB
  • Receiver Sensitivity
    -21 to -18 dBm
  • Rx Power
    0
  • Tx Power
    -5
  • Supply Current
    50 to 170 mA
  • Supply Voltage
    3.1 to 3.5 V
  • Note
    Relative Humidity: 95%, Extinction Ratio: 8.2 dB, Rise Time: 0.17 ns, Fall Time: 0.17 ns, Input Voltage: 0.8 to 2 V, Output Voltage: 0.4 to 2.4 V

Temperature

  • Operating Temperature
    0 to 85 Degree C
  • Storage Temperature
    -40 to 85 Degree C

Physical Properties

  • Fiber Core Diameter
    9 µm
