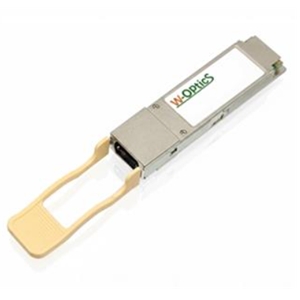

200G QSFP56 SR4

Fiber Optic Transceiver by W-Optics Technology
74 more products from this company
Request Quote

Note: Your Quotation Request will be directed to W-Optics Technology.

The 200G QSFP56 SR4 from W-Optics Technology is a Fiber Optic Transceiver with Data Rate 200 Gb/s, Distance/Reach Up to 100 m. More details for 200G QSFP56 SR4 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    200G QSFP56 SR4
  • Manufacturer
    W-Optics Technology
  • Description
    200 Gb/s Multi Mode Transceiver with Up to 100 m Distance

Applications

  • Applications
    High speed communication systems, Data Center
  • Standard Supported
    QSFP MSA, SFF-8665, SFF-8636, 200GAUI-4, IEEE 802.3cd 200GBASE-SR4

Connections & Interface

  • Connector
    MPO

General Parameters

  • Data Rate
    200 Gb/s
  • Distance/Reach
    Up to 100 m
  • Fiber Modes
    Multi Mode
  • Form Factor
    QSFP
  • Power Consumption
    <5 W
  • Supply Voltage
    3 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C
Click to view more product details on manufacturer's website
