S2x-xAFx-211

Fiber Optic Transceiver by W-Optics Technology
74 more products from this company
Request Quote

Note: Your Quotation Request will be directed to W-Optics Technology.

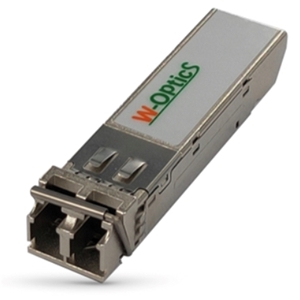

The S2x-xAFx-211 from W-Optics Technology is a Fiber Optic Transceiver with Data Rate 1.25 Gb/s, Wavelength 1310 nm, 1490 nm, Distance/Reach 10 km, Output Power -9 to -3 dBm, Receiver Sensitivity -19 dBm. More details for S2x-xAFx-211 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    S2x-xAFx-211
  • Manufacturer
    W-Optics Technology
  • Description
    1310 nm, 1490 nm Trasceiver with -9 to -3 dBm Power

Connections & Interface

  • Connector
    LC
  • Interface
    100BASE-BX, OC-3/STM-1SONET/SDH, 1000BASE-BX

General Parameters

  • Data Rate
    1.25 Gb/s
  • Wavelength
    1310 nm, 1490 nm
  • Distance/Reach
    10 km
  • Output Power
    -9 to -3 dBm
  • Form Factor
    CSFP
  • Receiver Sensitivity
    -19 dBm
  • Supply Voltage
    3.3 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C (CT), -40 to 85 Degree C (IT)
