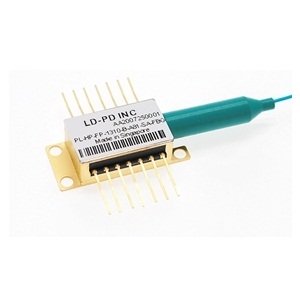

PL-HP-FP-1310-B-A81-SA-FBG

Laser Diode by LD-PD Inc
589 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to LD-PD Inc.

The PL-HP-FP-1310-B-A81-SA-FBG from LD-PD Inc is a Laser Diode with Wavelength 1310 nm (Center), Output Power 300 mW, Output Power 300 mW, Threshold Current 80 to 100 mA, Operating Current 1200 to 1500 mA. More details for PL-HP-FP-1310-B-A81-SA-FBG can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PL-HP-FP-1310-B-A81-SA-FBG
  • Manufacturer
    LD-PD Inc
  • Description
    1310nm High power FP SM Module Laser Diodes (with FBG)

Applications

  • Application
    Printing, Optical Data Storage, Spectral Analysis, Graphics, Laser Ranging, Illumination, Defense

General Parameters

  • Technology
    Fabry-Perot (FP)
  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser, Pulsed Laser
  • Wavelength
    1310 nm (Center)
  • Output Power
    300 mW
  • Output Power
    300 mW
  • Spectral Width (FWHM)
    0.3 nm
  • Wavelength Tolerance
    ±5 nm
  • Polarization Extinction Ratio
    17 to 20 dB nm
  • Wavelength Temp. Coefficient
    -4.4 nm / Degree C
  • Threshold Current :
    80 to 100 mA
  • Forward Voltage
    1.8 to 2.5 V
  • Reverse Voltage
    1.8 V
  • Operating Current
    1200 to 1500 mA
  • Operating Current
    1200 to 1500 mA
  • Reverse Voltage(PD)
    10 V
  • Thermistor Resistance
    9.5 to 10.5 kOhms
  • Fiber Modes
    Single Mode
  • Photo Diode Dark Current
    0.1 µA
  • Package Type
    Butterfly
  • Package
    14-pin butterfly
  • Note
    Case Temperature: -5 to 70 Degree C

Connections & Interface

  • Connector
    FC/APC
