UKKO–PS–532–50–5–10

Laser by Evolase
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Evolase.

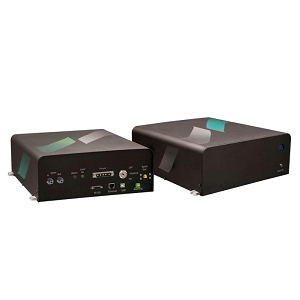

The UKKO–PS–532–50–5–10 from Evolase is a Laser with Wavelength 532 nm, Power >5 W, Pulse Energy 10 µJ, Pulse Width 50 ps, Repetition Rate 50 kHz to 20 MHz. More details for UKKO–PS–532–50–5–10 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    UKKO–PS–532–50–5–10
  • Manufacturer
    Evolase
  • Description
    532 nm Green Pulsed Fiber Laser System

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Picosecond Lasers
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing, Environmental
  • Application
    Time Resolved Raman spectroscopy, High Repetition Rate Green Laser, Chemical Analysis, Food and Pharmaceutical Industry, Pumping of Femtosecond OPO/OPA
  • Operation Mode
    Pulsed Laser
  • Wavelength
    532 nm
  • Wavelength Accuracy
    ±1 nm
  • Power
    >5 W
  • Pulse Energy :
    10 µJ
  • Pulse Energy
    10 µJ
  • Pulse Width
    50 ps
  • Repetition Rate
    50 kHz to 20 MHz
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Green
  • Polarization ratio :
    >15 dB
  • Beam Divergence :
    <3 mrad
  • Beam Quality Factor (M2) :
    <1.3
  • Laser Class
    Class IV
  • Power Consumption
    170 W
  • Power Stability
    <1%
  • Pointing Stability :
    <70 µrad
  • Interface
    RS232, LAN, USB
  • Voltage
    24 V

Physical Properties

  • Package
    Benchtop
  • Dimension
    345 x 330 x 121 mm (W x H x L)
  • Beam Diameter
    0.8 to 1.2 mm

Environmental Conditions

  • Cooling Method
    Air Cooled
  • Relative Humidity
    10 to 80%
  • Operating Temperature
    18 to 27 Degree C
