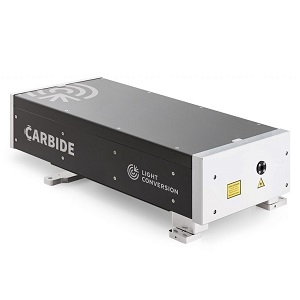

CB3-UV-50W

Laser by Light Conversion
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Light Conversion.

The CB3-UV-50W from Light Conversion is a Laser with Wavelength 343 nm, Power >50 W, Pulse Energy 35 to 150 µJ, Pulse Width 500 fs, Repetition Rate 300 to 1200 kHz. More details for CB3-UV-50W can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CB3-UV-50W
  • Manufacturer
    Light Conversion
  • Description
    343 nm Ultraviolet Pulsed Laser System

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Femtosecond Lasers
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing
  • Operation Mode
    Pulsed Laser
  • Wavelength
    343 nm
  • Wavelength Accuracy
    ±3 nm
  • Power
    >50 W
  • Pulse Energy :
    35 to 150 µJ
  • Pulse Energy
    35 to 150 µJ
  • Pulse Width
    500 fs
  • Repetition Rate
    300 to 1200 kHz
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Ultraviolet
  • Polarization
    Vertical
  • Polarization Orientation
    Linear
  • Polarization ratio :
    1:2000
  • Beam Quality Factor (M2) :
    <1.3
  • Current
    5 to 12 A
  • Laser Class
    Class IV
  • Power Consumption
    900 W (Laser), 1300 W (Chiller)
  • Power Stability
    <0.5%
  • Power Supply
    100 to 240 VAC, 50 to 60 Hz

Physical Properties

  • Package
    Benchtop
  • Laser Head Dimension
    832 x 350 x 174 mm (L x W x H)
  • Beam Diameter
    2.5 to 5 mm

Environmental Conditions

  • Cooling Method
    Water Cooled
  • Relative Humidity
    <80%
  • Operating Temperature
    15 to 30 Degree C

Technical Documents
Click to view more product details on manufacturer's website
