QBU-BT-5020

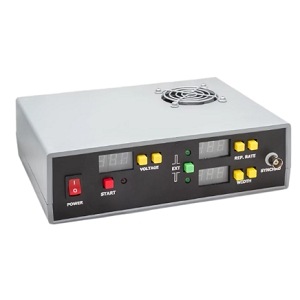

Pockels Cell Driver by OEM Tech
76 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OEM Tech.

The QBU-BT-5020 from OEM Tech is a Pockels Cell Driver with Output Voltage Amplitude 2 to 5 kV, Fall Time <20 ns, Load Capacitance 23 pF, Repetition Rate Up to 100 kHz, Rise Time <20 ns. More details for QBU-BT-5020 can be seen below.

Product Specifications

Product Details

  • Part Number
    QBU-BT-5020
  • Manufacturer
    OEM Tech
  • Description
    2 to 5 kV <20 ns Up to 100 kHz 23 pF Bipolar, Pull-down, Push-pull Pockel cell driver

Applications

  • Application
    Q-switching, Pulse picking, pulse slicing

Electrical Specifications

  • Output Voltage Amplitude
    2 to 5 kV
  • Fall Time
    <20 ns
  • Load Capacitance
    23 pF
  • HV Operation Voltage
    2000 to 5000 V
  • Current Consumption
    <1 A
  • HV Power Supply
    100 to 240 VAC, 50/60 Hz
  • TTL Signal
    External TTL

General Parameters

  • Crystal Material
    Beta Barium Borate (BBO), Potassium Dihydrogen Phosphate (KD*P), Potassium Titanyl Phosphate (KTP)
  • Repetition Rate
    Up to 100 kHz
  • Rise Time
    <20 ns
  • Output Type
    Bi-Polar, Pull-Down, Push-Up
  • Control Interface
    RS-232
  • Design Type
    Bench-top
  • Jitter
    ±10 ns (±1 ns in LJ-modification)
  • Propagation Delay
    1 µs (100 ns in LJ-modification)
  • Recovery Time
    1 us to 1 s (Internal), 200 ns to Infinity (External)
  • Working Mode
    Pull-Down, Push-Up, External TTL

Physical Properties

  • Dimensions
    225 x 180 x 70 mm (L x W x H)
  • Weight
    1.5 kg

Environmental Conditions

  • Operating Temperature
    0 to 40 Degree C
  • Storage Temperature
    -20 to 60 Degree C

Technical Documents
Click to view more product details on manufacturer's website
