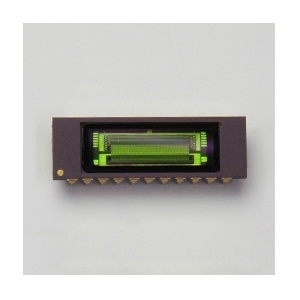

G9203-256DA

SWIR Sensor by Hamamatsu Photonics
47 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Hamamatsu Photonics.

The G9203-256DA from Hamamatsu Photonics is a SWIR Sensor with Dark Current -20 to 20 pA, Line Rate 1910 lines/s, Clock Frequency 0.1 to 4 MHz, Clock Pulse Width 100 ns, Data Rate 0.0125 to 0.5 MHz(Video). More details for G9203-256DA can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    G9203-256DA
  • Manufacturer
    Hamamatsu Photonics
  • Description
    Image sensor for DWDM wavelength monitor

General Parameters

  • SWIR Type
    InGaAs SWIR Sensor
  • Sensor Technology
    Indium Gallium Arsenide (InGaAs)
  • Total Number of Pixels
    256 pixels
  • Sensor Type
    Line Scan Sensor
  • Number of Effective Pixels
    256 pixels
  • Dark Current
    -20 to 20 pA
  • Pixel Size(H x V)
    50 x 500 µm
  • Pixel Pitch
    50 µm
  • Cooling
    Non-Cooled
  • Image Size
    12.8 x 0.5 mm
  • Line Rate
    1910 lines/s
  • Package Type
    Ceramic, DIP
  • Package
    22-pin ceramic DIP
  • Clock Pulse rise/fall times
    20 tot 100 ns
  • Clock Pulse Voltage
    0 to 0.5 V
  • Conversion Efficiency
    16 nV/e-
  • Current Consumption
    45 to 50 mA
  • Dark Output (nonuniformity)
    -2 to 2 V/s
  • Dynamic Range
    16666
  • Element bias Voltage
    3.5 to 4.6 V
  • Operating Frequency
    0.1 to 4 MHz
  • Output Impedance
    2 kOhms
  • Output settling time
    600 ns
  • Output Voltage
    1.26 to 4.5 V
  • Peak Sensitivity Wavelength
    1.55 µm
  • Photoresponse Nonuniformity
    ±2 to ±20%
  • Readout Noise
    180 to 300 mV rms
  • Reset (fall) timing
    50 ns
  • Reset (rise) timing
    50 ns
  • Reset pulse rise/fall times
    20 to 100 ns
  • Reset Pulse Width
    6000 ns
  • Saturation Charge
    187.5 Me-
  • Saturation Output Voltage
    3 V
  • Window Material
    Borosilicate glass with, anti-reflective coating
  • Clock Frequency
    0.1 to 4 MHz
  • Clock Pulse Width
    100 ns
  • Data Rate
    0.0125 to 0.5 MHz(Video)
  • Responsivity/Photosensitivity
    0.95 A/W
  • Spectral Response Range
    0.9 to 1.7 µm
  • Supply Voltage
    4.9 to 5.1 V
  • Supply Current
    45 to 50 mA

Applications

  • Application
    Near infrared spectroscopy, Foreign matter detection monitors, DWDM Monitors

Environmental Conditions

  • Operating Temperature
    -40 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C
