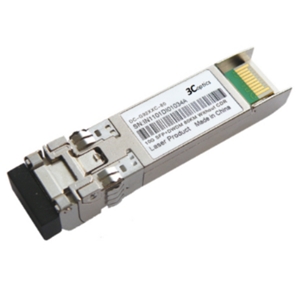

10GDWDM-80-CXX

Fiber Optic Transceiver by 3Coptics
97 more products from this company
Request Quote

Note: Your Quotation Request will be directed to 3Coptics.

The 10GDWDM-80-CXX from 3Coptics is a Fiber Optic Transceiver with Data Rate 10 Gb/s, Wavelength 1528.77 to 1563.86 (DWDM), Distance/Reach 80 km (Reach), Output Power 0 to 4 dBm, Receiver Sensitivity -24 dBm. More details for 10GDWDM-80-CXX can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    10GDWDM-80-CXX
  • Manufacturer
    3Coptics
  • Description
    1528.77 to 1563.86 DWDM Transceiver with 0 to 4 dBm Power

Connections & Interface

  • Connector
    LC

General Parameters

  • Data Rate
    10 Gb/s
  • Wavelength
    1528.77 to 1563.86 (DWDM)
  • Distance/Reach
    80 km (Reach)
  • Output Power
    0 to 4 dBm
  • Form Factor
    SFP
  • Receiver Sensitivity
    -24 dBm
  • Power Consumption
    <1.5 W
  • Tx Power
    0 to 4 dBm

Temperature

  • Operating Temperature
    0 to 70 Degree C
