LS38-B3L-TI-N

Fiber Optic Transceiver by APAC Opto Electronics Inc.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to APAC Opto Electronics Inc..

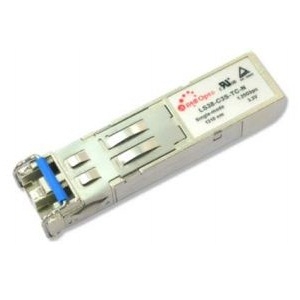

The LS38-B3L-TI-N from APAC Opto Electronics Inc. is a Fiber Optic Transceiver with Data Rate 622 Mb/s, Wavelength 1310 nm, Distance/Reach 50 km, Output Power -3 to 2 dBm, Receiver Sensitivity -28 dBm. More details for LS38-B3L-TI-N can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LS38-B3L-TI-N
  • Manufacturer
    APAC Opto Electronics Inc.

Connections & Interface

  • Connector
    LC

General Parameters

  • Data Rate
    622 Mb/s
  • Wavelength
    1310 nm
  • Distance/Reach
    50 km
  • Output Power
    -3 to 2 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    SFP
  • Receiver Sensitivity
    -28 dBm
  • Rx Power
    -3 dBm
  • Tx Power
    2 to -3 dBm
  • Tx/Rx Component
    DFB(Tx)
  • Supply Current
    300 mA
  • Supply Voltage
    3.3V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 85 Degree C
