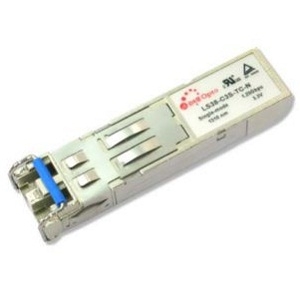

LS48-C3U-TI-N

Fiber Optic Transceiver by APAC Opto Electronics Inc.
100 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to APAC Opto Electronics Inc..

The LS48-C3U-TI-N from APAC Opto Electronics Inc. is a Fiber Optic Transceiver with Data Rate 1063 to 1250 Mb/s, Wavelength 1550 nm, Distance/Reach 70 km, Output Power 5 dBm, Receiver Sensitivity -24 dBm. More details for LS48-C3U-TI-N can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LS48-C3U-TI-N
  • Manufacturer
    APAC Opto Electronics Inc.

Applications

  • Applications
    100-SM-LL-L
  • Standard Supported
    IEEE802.3z

Connections & Interface

  • Connector
    LC

General Parameters

  • Data Rate
    1063 to 1250 Mb/s
  • Wavelength
    1550 nm
  • Distance/Reach
    70 km
  • Output Power
    5 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    SFP
  • Receiver Sensitivity
    -24 dBm
  • Rx Power
    -3 dBm
  • Tx Power
    5 dBm
  • Tx/Rx Component
    DFB(Tx)
  • Supply Current
    300 mA
  • Supply Voltage
    3.3V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 85 Degree C

Technical Documents
Click to view more product details on manufacturer's website
