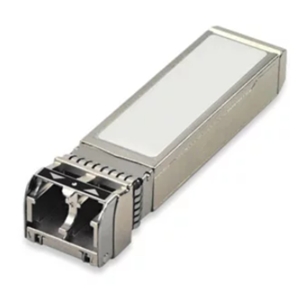

FTLF8546P4BCV

Fiber Optic Transceiver by Coherent Corp.
18 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Coherent Corp..

The FTLF8546P4BCV from Coherent Corp. is a Fiber Optic Transceiver with Data Rate 4.25 to 14.025 Gb/s, Wavelength 840 to 860 nm (Tx), 770 to 860 nm (Rx), Distance/Reach 100 m, Output Power -12 to 0 dBm, Receiver Sensitivity -12.1 to -7.5 dBm. More details for FTLF8546P4BCV can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FTLF8546P4BCV
  • Manufacturer
    Coherent Corp.
  • Description
    16GFC, 10GE RoHS Compliant Short Wavelength SFP+ Transceiver

Applications

  • Applications
    14.025 Gb/s Fibre Channel, 10.3Gb/s Gigabit Ethernet

Connections & Interface

  • Connector
    Duplex LC

General Parameters

  • Data Rate
    4.25 to 14.025 Gb/s
  • Wavelength
    840 to 860 nm (Tx), 770 to 860 nm (Rx)
  • Distance/Reach
    100 m
  • Output Power
    -12 to 0 dBm
  • Fiber Modes
    Multi Mode
  • Form Factor
    SFP+
  • Receiver Sensitivity
    -12.1 to -7.5 dBm
  • Rx Power
    -12 to 0 dBm
  • Tx Power
    -7.8 dBm
  • Tx/Rx Component
    VCSEL(Tx)/PIN(Rx)
  • Supply Current
    290 mA
  • Supply Voltage
    3.14 to 3.46 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C (Case)
  • Storage Temperature
    -40 to 85 Degree C

Physical Properties

  • Fiber Core Diameter
    50 µm
