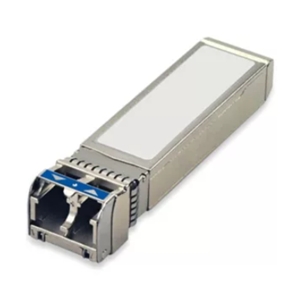

FTLX1370W4BTL

Fiber Optic Transceiver by Coherent Corp.
18 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Coherent Corp..

The FTLX1370W4BTL from Coherent Corp. is a Fiber Optic Transceiver with Data Rate 2.4 to 10.3 Gb/s, Wavelength 1260 to 1355 nm (Tx), 1260 to 1600 nm (Rx), Distance/Reach up to 1.4 km, Output Power -8.2 to 0.5 dBm, Receiver Sensitivity -12.6 dBm. More details for FTLX1370W4BTL can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FTLX1370W4BTL
  • Manufacturer
    Coherent Corp.
  • Description
    RoHS Compliant 10.3125Gb/s Single Mode Long-wavelength SFP+ Transceiver

Applications

  • Applications
    2.457 Gb/s CPRI, 3.072 Gb/s CPRI/LTE, 4.915 Gb/s CPRI/LTE, 6.144 Gb/s CPRI/OBSAI/LTE, 9.8304 Gb/s CPRI/LTE, 10.1376 Gb/s CPRI/LTE

Connections & Interface

  • Connector
    Duplex LC
  • Interface
    CPRI

General Parameters

  • Data Rate
    2.4 to 10.3 Gb/s
  • Wavelength
    1260 to 1355 nm (Tx), 1260 to 1600 nm (Rx)
  • Distance/Reach
    up to 1.4 km
  • Output Power
    -8.2 to 0.5 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    SFP+
  • Receiver Sensitivity
    -12.6 dBm
  • Power Consumption
    1 W
  • Rx Power
    0.5 dBm
  • Tx Power
    -8.2 to 0.5 dBm
  • Tx/Rx Component
    FP(Tx)/PIN(Rx)
  • Supply Current
    300 mA
  • Supply Voltage
    3.14 to 3.46 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    -40 to 85 Degree C (Case)
  • Storage Temperature
    -40 to 85 Degree C

Physical Properties

  • Fiber Core Diameter
    9 µm
