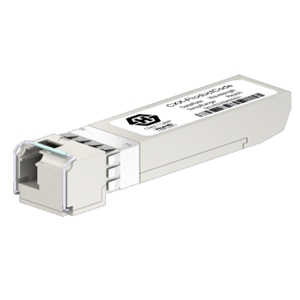

CSB-852A08

Fiber Optic Transceiver by Huber+Suhner
99 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Huber+Suhner.

The CSB-852A08 from Huber+Suhner is a Fiber Optic Transceiver with Data Rate 1.0625 to 11.3 Gb/s, Wavelength 1270 to 1330 nm, Distance/Reach up to 10 km, Output Power -6 to -1 dBm, Receiver Sensitivity <-14.4 dBm. More details for CSB-852A08 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CSB-852A08
  • Manufacturer
    Huber+Suhner
  • Description
    10G SFP+ Bidi LR Transceiver

Connections & Interface

  • Connector
    Simplex LC/PC
  • Interface
    Ethernet, CPRI

General Parameters

  • Data Rate
    1.0625 to 11.3 Gb/s
  • Wavelength
    1270 to 1330 nm
  • Distance/Reach
    up to 10 km
  • Output Power
    -6 to -1 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    SFP+
  • Receiver Sensitivity
    <-14.4 dBm
  • Power Consumption
    <1 W
  • Tx Power
    -6 to -1 dBm
  • Tx/Rx Component
    DFB(Tx)/PIN(Rx)
  • Supply Current
    <300 mA
  • Supply Voltage
    3.13 to 3.47 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 85 Degree C
