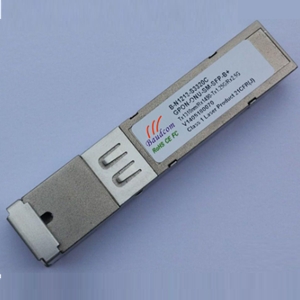

B-N1213-S3320C

Fiber Optic Transceiver by Shanghai Baudcom Communication Device
43 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Shanghai Baudcom Communication Device.

The B-N1213-S3320C from Shanghai Baudcom Communication Device is a Fiber Optic Transceiver with Data Rate 2.488 Gb/s, Wavelength 1260 to 1360 nm, Distance/Reach 20 km, Output Power 0.5 to 5 dBm, Receiver Sensitivity -28 dBm. More details for B-N1213-S3320C can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    B-N1213-S3320C
  • Manufacturer
    Shanghai Baudcom Communication Device
  • Description
    1260 to 1360 nm Optical Transceiver with 0.5 to 5 dBm Power

Applications

  • Applications
    GPON ONU For P2MP Application

Connections & Interface

  • Connector
    SC/PC, SC/APC
  • Interface
    LVPECL, LVTTL

General Parameters

  • Data Rate
    2.488 Gb/s
  • Wavelength
    1260 to 1360 nm
  • Distance/Reach
    20 km
  • Output Power
    0.5 to 5 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    SFP
  • Receiver Sensitivity
    -28 dBm
  • Supply Current
    350 mA
  • Supply Voltage
    3.135 to 3.465 V

Temperature

  • Operating Temperature
    0 to 70 Degree C, -40 to 85 Degree C
