BD-1234-SPM

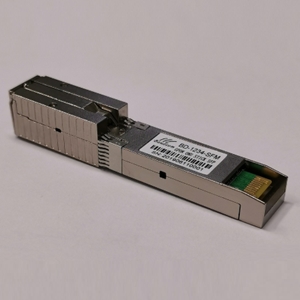

Fiber Optic Transceiver by Shanghai Baudcom Communication Device
43 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Shanghai Baudcom Communication Device.

The BD-1234-SPM from Shanghai Baudcom Communication Device is a Fiber Optic Transceiver with Data Rate 1.25 Gb/s, 2.5 Gb/s, Wavelength 1290 to 1500 nm (Tx), 1480 to 1500 nm (Rx), Distance/Reach 20 km, Output Power 0.5 to 5 dBm, Receiver Sensitivity -28 dBm. More details for BD-1234-SPM can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BD-1234-SPM
  • Manufacturer
    Shanghai Baudcom Communication Device
  • Description
    1290 to 1500 nm Optical Transceiver with 0.5 to 5 dBm Power

Applications

  • Applications
    GPON ONU

Connections & Interface

  • Connector
    SC/UPC
  • Interface
    DDM

General Parameters

  • Data Rate
    1.25 Gb/s, 2.5 Gb/s
  • Wavelength
    1290 to 1500 nm (Tx), 1480 to 1500 nm (Rx)
  • Distance/Reach
    20 km
  • Output Power
    0.5 to 5 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    SFP
  • Receiver Sensitivity
    -28 dBm
  • Supply Voltage
    3.3 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C
