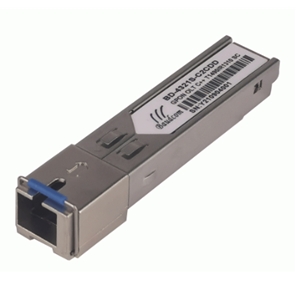

BD-4321S-C2CDD

Fiber Optic Transceiver by Shanghai Baudcom Communication Device
43 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Shanghai Baudcom Communication Device.

The BD-4321S-C2CDD from Shanghai Baudcom Communication Device is a Fiber Optic Transceiver with Data Rate 2.5 Gb/s, Wavelength 1480 to 1500 nm (Tx), 1260 to 1360 nm (Rx), Output Power 3 to 9 dBm, Receiver Sensitivity -32 to -29 dBm. More details for BD-4321S-C2CDD can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BD-4321S-C2CDD
  • Manufacturer
    Shanghai Baudcom Communication Device
  • Description
    1260 to 1500 nm Optical Transceiver with 3 to 9 dBm Power

Connections & Interface

  • Connector
    SC/UPC
  • Interface
    LVTTL, LVPECL

General Parameters

  • Data Rate
    2.5 Gb/s
  • Wavelength
    1480 to 1500 nm (Tx), 1260 to 1360 nm (Rx)
  • Output Power
    3 to 9 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    SFP
  • Receiver Sensitivity
    -32 to -29 dBm
  • Power Consumption
    1.65 W
  • Tx Power
    3 to 9 dBm
  • Supply Current
    500 mA
  • Supply Voltage
    3.135 to 3.3 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    -40 to 85 Degree C
Click to view more product details on manufacturer's website
