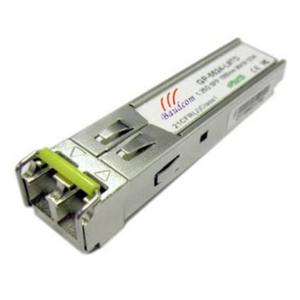

BD-55M2-L8x(D)

Fiber Optic Transceiver by Shanghai Baudcom Communication Device
43 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Shanghai Baudcom Communication Device.

The BD-55M2-L8x(D) from Shanghai Baudcom Communication Device is a Fiber Optic Transceiver with Data Rate 155 Mb/s to 2.67 Gb/s, Wavelength 1430 to 1580 nm (Tx), 1260 to 1580 nm (Rx), Distance/Reach 80 km, Output Power -2 to 3 dBm, Receiver Sensitivity -28 dBm. More details for BD-55M2-L8x(D) can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BD-55M2-L8x(D)
  • Manufacturer
    Shanghai Baudcom Communication Device
  • Description
    1260 to 1580 nm Optical Transceiver with -2 to 3 dBm Power

Applications

  • Applications
    SDH STM-16 and SONET OC-48 system, 2X Fiber Channel, Switch to Switch interface, Switched backplane applications, Router/Server interface, Other optical transmission systems

Connections & Interface

  • Connector
    Duplex LC
  • Interface
    SDH STM-16, SONET OC-48

General Parameters

  • Data Rate
    155 Mb/s to 2.67 Gb/s
  • Wavelength
    1430 to 1580 nm (Tx), 1260 to 1580 nm (Rx)
  • Distance/Reach
    80 km
  • Output Power
    -2 to 3 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    SFP
  • Receiver Sensitivity
    -28 dBm
  • Supply Voltage
    3.3 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C
