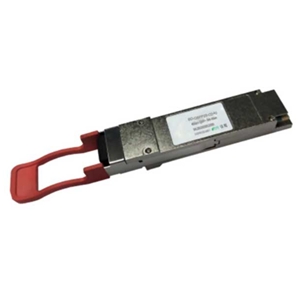

BD-QSFP28-CD40

Fiber Optic Transceiver by Shanghai Baudcom Communication Device
43 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Shanghai Baudcom Communication Device.

The BD-QSFP28-CD40 from Shanghai Baudcom Communication Device is a Fiber Optic Transceiver with Data Rate 103.1 Gb/s, Wavelength 1294.53 to 1310.19 nm, Distance/Reach 40 km, Output Power -2.9 to 4.5 dBm, Receiver Sensitivity -18.65 to -14.65 dBm. More details for BD-QSFP28-CD40 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BD-QSFP28-CD40
  • Manufacturer
    Shanghai Baudcom Communication Device
  • Description
    1294.53 to 1310.19 nm Optical Transceiver with -2.9 to 4.5 dBm Power

Applications

  • Applications
    100GBASE-ER4, Infiniband QDR and DDR interconnects, 100G Datacom connections

Connections & Interface

  • Connector
    Duplex LC
  • Interface
    I2C

General Parameters

  • Data Rate
    103.1 Gb/s
  • Wavelength
    1294.53 to 1310.19 nm
  • Distance/Reach
    40 km
  • Output Power
    -2.9 to 4.5 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    QSFP
  • Receiver Sensitivity
    -18.65 to -14.65 dBm
  • Power Dissipation
    4.5 W
  • Rx Power
    -20.9 to -4.9 dBm
  • Tx Power
    -2.9 to 4.5 dBm
  • Supply Current
    1.36 A
  • Supply Voltage
    -0.5 to 3.6 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C
