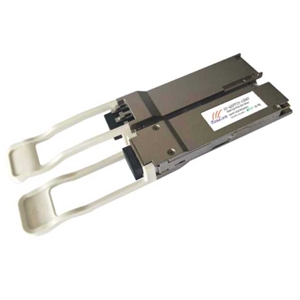

BD-QSFP28-CD80

Fiber Optic Transceiver by Shanghai Baudcom Communication Device
43 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Shanghai Baudcom Communication Device.

The BD-QSFP28-CD80 from Shanghai Baudcom Communication Device is a Fiber Optic Transceiver with Data Rate 100 Gb/s, Wavelength 1295.56 to 1309.14 nm (LWDM), Distance/Reach Up to 80 km. More details for BD-QSFP28-CD80 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BD-QSFP28-CD80
  • Manufacturer
    Shanghai Baudcom Communication Device
  • Description
    1295.56 to 1309.14 nm LWDM Optical Transceiver with Up to 80 km Distance

Applications

  • Applications
    100GBASE-ZR4 100G Ethernet, Telecom networking

Connections & Interface

  • Connector
    38-pin, LC

General Parameters

  • Data Rate
    100 Gb/s
  • Wavelength
    1295.56 to 1309.14 nm (LWDM)
  • Distance/Reach
    Up to 80 km
  • Fiber Modes
    Single Mode
  • Form Factor
    QSFP
  • Power Consumption
    6.5 W
  • Supply Voltage
    3.3 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C
Click to view more product details on manufacturer's website
