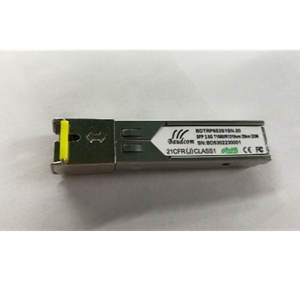

BDTRP653S1SN-20

Fiber Optic Transceiver by Shanghai Baudcom Communication Device
43 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Shanghai Baudcom Communication Device.

The BDTRP653S1SN-20 from Shanghai Baudcom Communication Device is a Fiber Optic Transceiver with Data Rate 2.5 Gb/s, 2.125 Gb/s, Wavelength 1270 to 1570 nm, Distance/Reach 20 km, Output Power -6 to 1 dBm, Receiver Sensitivity -18 dBm. More details for BDTRP653S1SN-20 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BDTRP653S1SN-20
  • Manufacturer
    Shanghai Baudcom Communication Device
  • Description
    1270 to 1570 nm Optical Transceiver with -6 to 1 dBm Power

Applications

  • Applications
    SDH STM-16 and SONET OC-48 system, 1x Fiber Channel, Switch to Switch interface, Switched backplane applications, Router/Server interface, Other optical transmission systems

Connections & Interface

  • Connector
    SC/UPC
  • Interface
    DDM

General Parameters

  • Data Rate
    2.5 Gb/s, 2.125 Gb/s
  • Wavelength
    1270 to 1570 nm
  • Distance/Reach
    20 km
  • Output Power
    -6 to 1 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    SFP
  • Receiver Sensitivity
    -18 dBm
  • Supply Current
    200 to 300 mA
  • Supply Voltage
    3 to 3.6 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C, -40 to 85 Degree C
  • Storage Temperature
    -40 to 100 Degree C
