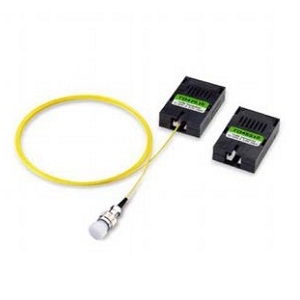

TBAxx40(60) Series

Fiber Optic Transceiver by Teradian
Download Datasheet Request Quote

Note: Your Quotation Request will be directed to Teradian.

The TBAxx40(60) Series from Teradian is a Fiber Optic Transceiver with Data Rate 10 to 155.52 Mbps, Wavelength 1260 to 1600 nm, Distance/Reach 40 to 60 km, Output Power -7 to 2 dBm, Receiver Sensitivity -36 to -28 dBm. More details for TBAxx40(60) Series can be seen below.

Product Specifications

Product Details

  • Part Number
    TBAxx40(60) Series
  • Manufacturer
    Teradian
  • Description
    Asymmetric Bi-Directional Transceiver

Applications

  • Applications
    Intra-office and Inter-office SONET/ITU-T SDH, Fiber in the loop(FTTO, FTTC, FTTH etc.), High-speed data links, Single-mode FDDI, Private optical networks, ATM

Connections & Interface

  • Connector
    SC, FC, ST, LC

General Parameters

  • Data Rate
    10 to 155.52 Mbps
  • Wavelength
    1260 to 1600 nm
  • Distance/Reach
    40 to 60 km
  • Output Power
    -7 to 2 dBm
  • Form Factor
    Bi-Directional
  • Receiver Sensitivity
    -36 to -28 dBm
  • Rx Power
    2
  • Tx Power
    -7
  • Tx/Rx Component
    Fabry-Perot(FP)/(Rx)/PIN(Tx)
  • Supply Current
    120 to 190 mA
  • Supply Voltage
    3.1 to 5.25 V
  • Note
    Humidity: 95%, Input voltage: -1.810 to -0.880 V, Output Voltage: -1.892 to -0.879 V, Extinction Ratio: 10 dB, Spectral Width: 2.5 nm, Rise Time: 0.5 ns, Fall Time: 0.5 ns, Supply Voltage: 6 V

Temperature

  • Operating Temperature display
    0 to 85 Degree C
  • Storage Temperature
    -40 to 85 Degree C

Physical Properties

  • Fiber Core Diameter
    9 µm
