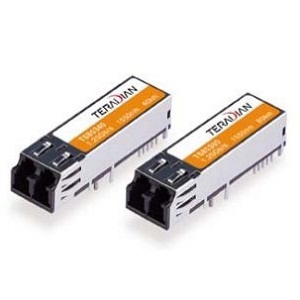

TS8#3xx series

Fiber Optic Transceiver by Teradian
74 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Teradian.

The TS8#3xx series from Teradian is a Fiber Optic Transceiver with Data Rate 1.25 Gbps, Wavelength 1270 to 1610 nm, Distance/Reach 40 to 80 km, Output Power -4 to 2 dB, Receiver Sensitivity -25 to -21 dBm. More details for TS8#3xx series can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    TS8#3xx series
  • Manufacturer
    Teradian
  • Description
    Gigabit Ethernet 1.25Gbps CWDM Transceiver

Applications

  • Applications
    CWDM applications, Gibabit Ethernet / LAN switch, Metro Ethernet, High-speed data links, Metropolitan Area Network

Connections & Interface

  • Connector
    LC

General Parameters

  • Data Rate
    1.25 Gbps
  • Wavelength
    1270 to 1610 nm
  • Distance/Reach
    40 to 80 km
  • Output Power
    -4 to 2 dB
  • Receiver Sensitivity
    -25 to -21 dBm
  • Rx Power
    2
  • Tx Power
    -4
  • Supply Current
    50 to 170 mA
  • Supply Voltage
    3.1 to 3.5 V
  • Note
    Relative Humidity: 95%, Extinction Ratio: 9 dB, Spectral Width: 1 nm, Rise Time: 0.26 ns, Fall Time: 0.26 ns, Input Voltage: 0.8 to 2 V, Output Voltage: 0.4 to 2.4 V

Temperature

  • Operating Temperature
    0 to 85 Degree C
  • Storage Temperature
    -40 to 85 Degree C

Physical Properties

  • Fiber Core Diameter
    9 µm
