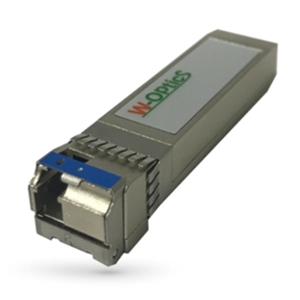

SSU-xALx-x11

Fiber Optic Transceiver by W-Optics Technology
74 more products from this company
Request Quote

Note: Your Quotation Request will be directed to W-Optics Technology.

The SSU-xALx-x11 from W-Optics Technology is a Fiber Optic Transceiver with Data Rate 1.25 Gb/s, Wavelength 1310 nm, 1490 nm, Distance/Reach 60 km, Output Power -2 to 3 dBm, Receiver Sensitivity -25 dBm. More details for SSU-xALx-x11 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SSU-xALx-x11
  • Manufacturer
    W-Optics Technology
  • Description
    1310 nm, 1490 nm Trasceiver with -2 to 3 dBm Power

Connections & Interface

  • Connector
    Simplex LC
  • Interface
    I2C, LVPECL, LVTTL, 2-wire serial

General Parameters

  • Data Rate
    1.25 Gb/s
  • Wavelength
    1310 nm, 1490 nm
  • Distance/Reach
    60 km
  • Output Power
    -2 to 3 dBm
  • Fiber Modes
    Multi Mode
  • Form Factor
    SFP
  • Receiver Sensitivity
    -25 dBm
  • Supply Voltage
    3.3 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C (CT), -40 to 85 Degree C (IT)
Click to view more product details on manufacturer's website
