Y-3672AI000

Fiber Optic Transceiver by YOFC
109 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to YOFC.

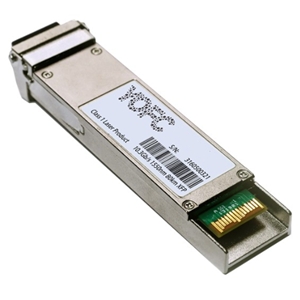

The Y-3672AI000 from YOFC is a Fiber Optic Transceiver with Data Rate 10 Gb/s, Wavelength 1550 nm, 1490 nm, Distance/Reach 80 km, Output Power -24 to -6 dBm. More details for Y-3672AI000 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Y-3672AI000
  • Manufacturer
    YOFC
  • Description
    1490 to 1550 nm Optical Transceiver with -24 to -6 dBm Power

Applications

  • Applications
    10G Ethernet, Metro, Access, Wireless, SDH/SONET, and other optical links

Connections & Interface

  • Connector
    LC
  • Interface
    SDH/SONET, Ethernet

General Parameters

  • Data Rate
    10 Gb/s
  • Wavelength
    1550 nm, 1490 nm
  • Distance/Reach
    80 km
  • Output Power
    -24 to -6 dBm
  • Fiber Modes
    Single Mode
  • Form Factor
    XFP
  • Supply Voltage
    3.3 V
  • RoHs
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C, -40 to 85 Degree C

Physical Properties

  • Fiber Core Diameter
    9 µm
