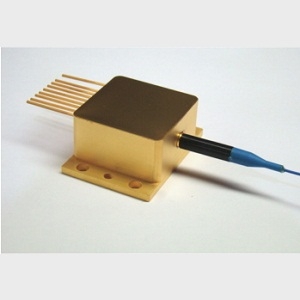

Laser Module 2000nm

Laser Diode by Achray Photonics

Note: Your Quotation Request will be directed to Achray Photonics.

The Laser Module 2000nm from Achray Photonics is a Laser Diode with Wavelength 1980 to 2020 nm, Output Power 20 mW, Output Power 20 mW, Operating Voltage 2 V, Operating Current 500 mA. More details for Laser Module 2000nm can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Laser Module 2000nm
  • Manufacturer
    Achray Photonics

General Parameters

  • Technology
    Vertical-Cavity Surface-Emitting Laser (VCSEL)
  • Operation Mode
    CW Laser
  • Wavelength
    1980 to 2020 nm
  • Output Power
    20 mW
  • Output Power
    20 mW
  • Operating Voltage
    2 V
  • Operating Current
    500 mA
  • Operating Current
    500 mA
  • Forward Current(PD)
    50 uA
  • Threshold Current :
    50 mA
  • Fiber Modes
    Multi-Mode
  • Operating Current (CW)
    500 mA
  • Package Type
    HHL
  • Package
    HHL
  • Type
    Fiber-Coupled Laser Diode, Free Space Laser Diode
  • Output Power (CW)
    20 mW
  • Note
    These modules offers two version in optics: fiber coupled and free space

Physical Properties

  • Fiber core diameter
    50/125 um

Connections & Interface

  • Connector
    FC

Technical Documents
