The I0808MB0600MX from Innovative Photonic Solutions is a Fiber-Coupled Laser Diode that operates at a wavelength of 808 nm. It delivers an output power of 600 mW and has a wavelength tolerance of ± 0.5 nm. This laser diode has a spectral linewidth below 0.1 nm and side-mode suppression ratio of 35 dB - 45 dB. It has an output power stability of 1% and a wavelength stability range from 15 °C to 45 °C.

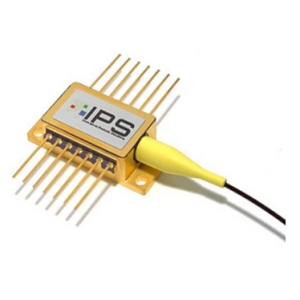

The I0808MB0600MX supports a 105 µm multimode (MM) fiber and is compatible with FC/PC & SMA905 connectors. It requires a DC supply voltage of 2.3 V and consumes 1350 mA of current. This laser diode is available in a 14-pin butterfly package and is ideal for high resolution Raman spectroscopy (portable Raman & process Raman), direct-diode frequency doubling, fiber laser pumping, metrology, interferometry & remote sensing applications.
