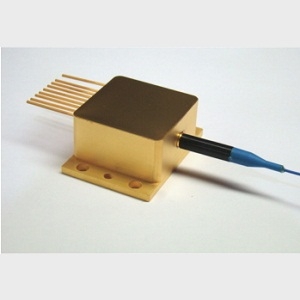

Laser Module 633nm

Laser Diode by Achray Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Achray Photonics.

The Laser Module 633nm from Achray Photonics is a Laser Diode with Wavelength 630 to 636 nm, Output Power 80 mW, Output Power 80 mW, Output Power (CW) 80 mW, Threshold Current 80 mA. More details for Laser Module 633nm can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Laser Module 633nm
  • Manufacturer
    Achray Photonics

General Parameters

  • Technology
    Vertical-Cavity Surface-Emitting Laser (VCSEL)
  • Type
    Fiber-Coupled Laser Diode, Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    630 to 636 nm
  • Output Power
    80 mW
  • Output Power
    80 mW
  • Output Power (CW)
    80 mW
  • Threshold Current :
    80 mA
  • Forward Current(PD)
    100 uA
  • Operating Current
    230 mA
  • Operating Current
    230 mA
  • Operating Voltage
    2.6 V
  • Operating Current (CW)
    230 mA
  • Fiber Modes
    Multi-Mode
  • Package Type
    HHL
  • Package
    HHL
  • Note
    These modules offers two version in optics: fiber coupled and free space

Physical Properties

  • Fiber core diameter
    50/125 um

Connections & Interface

  • Connector
    FC

Technical Documents
Click to view more product details on manufacturer's website
