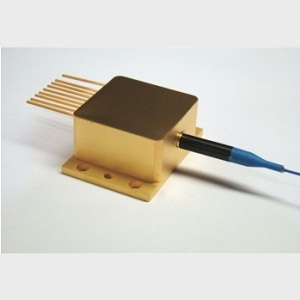

Laser Module 980nm

Laser Diode by Achray Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Achray Photonics.

The Laser Module 980nm from Achray Photonics is a Laser Diode with Wavelength 970 to 990 nm, Output Power 170 mW, Output Power 170 mW, Output Power (CW) 170 mW, Threshold Current 70 mA. More details for Laser Module 980nm can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Laser Module 980nm
  • Manufacturer
    Achray Photonics

General Parameters

  • Technology
    Vertical-Cavity Surface-Emitting Laser (VCSEL)
  • Type
    Fiber-Coupled Laser Diode, Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    970 to 990 nm
  • Output Power
    170 mW
  • Output Power
    170 mW
  • Output Power (CW)
    170 mW
  • Threshold Current :
    70 mA
  • Forward Current(PD)
    120 uA
  • Operating Current
    400 mA
  • Operating Current
    400 mA
  • Operating Voltage
    1.5 V
  • Operating Current (CW)
    400 mA
  • Fiber Modes
    Multi-Mode
  • Package Type
    HHL
  • Package
    HHL
  • Note
    These modules offers two version in optics: fiber coupled and free space

Physical Properties

  • Fiber core diameter
    50/125 um

Connections & Interface

  • Connector
    FC
