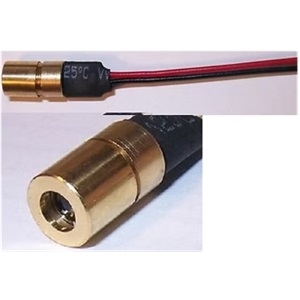

AH-650-5-801

Request Quote

Note: Your Quotation Request will be directed to AixiZ Service & International.

The AH-650-5-801 from AixiZ Service & International is a Laser Diode with Wavelength 645 nm, 650 nm, 660 nm, Output Power 5 mW, Output Power 5 mW, Threshold Current 20 to 25 mA, Operating Current 25 to 35 mA. More details for AH-650-5-801 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AH-650-5-801
  • Manufacturer
    AixiZ Service & International
  • Description
    645 to 660 nm Laser Diodes with 5 mW Power

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    645 nm, 650 nm, 660 nm
  • Output Power
    5 mW
  • Output Power
    5 mW
  • Slope Efficiency
    0.5 to 1 mW/mA
  • Beam Divergence Parallel
    6 to 9 Degree
  • Beam Divergence Perpendicular
    25 to 30 Degree
  • Threshold Current :
    20 to 25 mA
  • Operating Current
    25 to 35 mA
  • Operating Current
    25 to 35 mA
  • Operating Voltage
    2.2 to 2.5 V
  • Monitor Current
    0.05 to 0.3 mA
  • Package Type
    TO-Can
  • Package
    TO-18

Temperature

  • Operating Temperature
    50 Degree C
