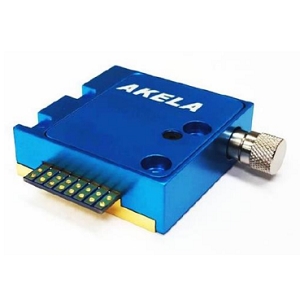

ALC-0465-02500-FM400.22

Laser Diode by AKELA Laser Corporation
135 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to AKELA Laser Corporation.

The ALC-0465-02500-FM400.22 from AKELA Laser Corporation is a Laser Diode with Wavelength 465 nm, Output Power 2.5 W, Output Power 2.5 W, Threshold Current 0.57 A, Operating Current 2.5 A. More details for ALC-0465-02500-FM400.22 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ALC-0465-02500-FM400.22
  • Manufacturer
    AKELA Laser Corporation
  • Description
    465 nm Single-Wavelength Diode Laser Modules with 2.5 W Power

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    465 nm
  • Output Power
    2.5 W
  • Output Power
    2.5 W
  • Spectral Width (FWHM)
    3 nm
  • Slope Efficiency
    1.31 W/A
  • Wavelength Tolerance
    ±10 nm
  • Wavelength Temp. Coefficient
    0.08 nm/Degree C
  • Threshold Current :
    0.57 A
  • Operating Current
    2.5 A
  • Operating Current
    2.5 A
  • Operating Voltage
    5 V
  • Monitor Current
    >0.01 mA (PD)
  • Laser Class
    CLASS IV
  • Package Type
    Module with connectors
  • Package
    TRIO

Physical Properties

  • Dimension
    38 x 38 x 12 mm
  • Fiber core diameter
    400 µm
  • RoHS
    Yes

Connections & Interface

  • Connector
    SMA

Temperature

  • Operating Temperature
    20 Degree C
