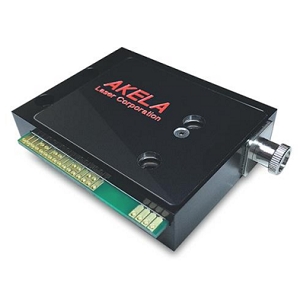

ALC-0915-34000-FM200.22

Laser Diode by AKELA Laser Corporation
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to AKELA Laser Corporation.

The ALC-0915-34000-FM200.22 from AKELA Laser Corporation is a Laser Diode with Wavelength 915 nm, Output Power 34 W, Output Power 34 W, Threshold Current 0.65 A, Operating Current 10 A. More details for ALC-0915-34000-FM200.22 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ALC-0915-34000-FM200.22
  • Manufacturer
    AKELA Laser Corporation
  • Description
    915 nm Single-Wavelength Diode Laser Modules with 34 W Power

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    915 nm
  • Output Power
    34 W
  • Output Power
    34 W
  • Spectral Width (FWHM)
    <7 nm
  • Slope Efficiency
    3.6 W/A
  • Wavelength Tolerance
    ±10 nm
  • Wavelength Temp. Coefficient
    0.3 nm/Degree C
  • Threshold Current :
    0.65 A
  • Operating Current
    10 A
  • Operating Current
    10 A
  • Operating Voltage
    7.4 V
  • Monitor Current
    >0.05 mA (PD)
  • Laser Class
    CLASS IV
  • Package Type
    Module with connectors
  • Package
    QUINTA
  • Note
    Linearized Wavelength Current: 0.6 nm/A

Physical Properties

  • Dimension
    50 x 65 x 15.5 mm
  • Fiber core diameter
    200 µm
  • RoHS
    Yes

Connections & Interface

  • Connector
    SMA

Temperature

  • Operating Temperature
    20 Degree C
