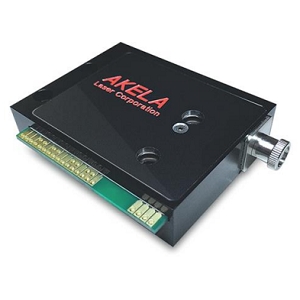

ALC-1160-20000-FM365.22

Laser Diode by AKELA Laser Corporation
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to AKELA Laser Corporation.

The ALC-1160-20000-FM365.22 from AKELA Laser Corporation is a Laser Diode with Wavelength 1160 nm, Output Power 20 W, Output Power 20 W, Threshold Current 1.2 A, Operating Current 12 A. More details for ALC-1160-20000-FM365.22 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ALC-1160-20000-FM365.22
  • Manufacturer
    AKELA Laser Corporation
  • Description
    1160 nm Single-Wavelength Diode Laser Modules with 20 W Power

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1160 nm
  • Output Power
    20 W
  • Output Power
    20 W
  • Spectral Width (FWHM)
    <14 nm
  • Slope Efficiency
    2.1 W/A
  • Wavelength Tolerance
    ±14 nm
  • Wavelength Temp. Coefficient
    0.5 nm/Degree C
  • Threshold Current :
    1.2 A
  • Operating Current
    12 A
  • Operating Current
    12 A
  • Operating Voltage
    5.4 V
  • Laser Class
    CLASS IV
  • Package Type
    Module with connectors
  • Package
    QUINTA

Physical Properties

  • Dimension
    50 x 65 x 15.5 mm
  • Fiber core diameter
    365 µm
  • RoHS
    Yes

Connections & Interface

  • Connector
    SMA

Temperature

  • Operating Temperature
    20 Degree C
