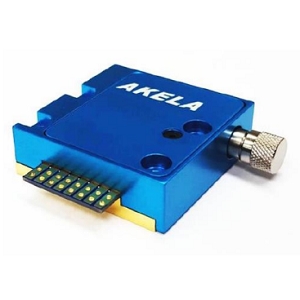

ALC-1680-03300-FM200.22

Laser Diode by AKELA Laser Corporation
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to AKELA Laser Corporation.

The ALC-1680-03300-FM200.22 from AKELA Laser Corporation is a Laser Diode with Wavelength 1680 nm, Output Power 3.3 W, Output Power 3.3 W, Threshold Current 1.36 A, Operating Current 7 A. More details for ALC-1680-03300-FM200.22 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ALC-1680-03300-FM200.22
  • Manufacturer
    AKELA Laser Corporation
  • Description
    1680 nm Single-Wavelength Diode Laser Modules with 3.3 W Power

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1680 nm
  • Output Power
    3.3 W
  • Output Power
    3.3 W
  • Spectral Width (FWHM)
    <15 nm
  • Slope Efficiency
    0.7 W/A
  • Wavelength Tolerance
    ±20 nm
  • Wavelength Temp. Coefficient
    0.66 nm/Degree C
  • Threshold Current :
    1.36 A
  • Operating Current
    7 A
  • Operating Current
    7 A
  • Operating Voltage
    2.6 V
  • Monitor Current
    >0.05 mA (PD)
  • Laser Class
    CLASS IV
  • Package Type
    Module with connectors
  • Package
    TRIO
  • Note
    Linearized Wavelength Current: 1.9 nm/A

Physical Properties

  • Dimension
    38 x 38 x 12 mm
  • Fiber core diameter
    200 µm
  • RoHS
    Yes

Connections & Interface

  • Connector
    SMA

Temperature

  • Operating Temperature
    20 Degree C
