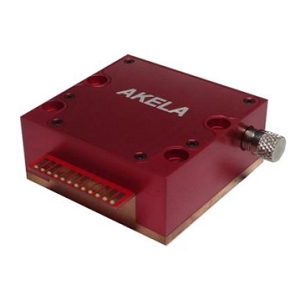

ALC-4WL10-00120-FM200.22

Laser Diode by AKELA Laser Corporation
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to AKELA Laser Corporation.

The ALC-4WL10-00120-FM200.22 from AKELA Laser Corporation is a Laser Diode with Wavelength 405 nm, 450 nm, 520 nm, 640 nm, Output Power 30 mW, Output Power 30 mW, Threshold Current 21 A, 24 A, 25 A, 46 A, Operating Current 50 mA, 55 mA, 80 mA, 85 mA. More details for ALC-4WL10-00120-FM200.22 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ALC-4WL10-00120-FM200.22
  • Manufacturer
    AKELA Laser Corporation
  • Description
    405 to 640 nm Multi-Wavelength Diode Laser Modules with 30 mW Power

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    405 nm, 450 nm, 520 nm, 640 nm
  • Output Power
    30 mW
  • Output Power
    30 mW
  • Spectral Width (FWHM)
    <2 nm
  • Slope Efficiency
    0.54 W/A, 0.91 W/A, 0.95 W/A, 1.14 W/A
  • Wavelength Tolerance
    ±4 nm, ±5 nm, ±9 nm, ±10 nm
  • Wavelength Temp. Coefficient
    0.05 nm/Degree C, 0.1 nm/Degree C, 0.17 nm/Degree C
  • Threshold Current :
    21 A, 24 A, 25 A, 46 A
  • Operating Current
    50 mA, 55 mA, 80 mA, 85 mA
  • Operating Current
    50 mA, 55 mA, 80 mA, 85 mA
  • Operating Voltage
    2.5 V, 4.8 V, 4.9 V, 5.6 V
  • Laser Class
    CLASS IV
  • Package Type
    Module with connectors
  • Package
    QUINTA

Physical Properties

  • Dimension
    50 x 52 mm
  • Fiber core diameter
    200 µm
  • RoHS
    Yes

Connections & Interface

  • Connector
    SMA

Temperature

  • Operating Temperature
    25 Degree C
