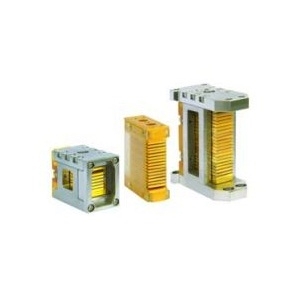

VSxx-Y-60-808

Laser Diode by Apollo Instruments, Inc.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Apollo Instruments, Inc..

The VSxx-Y-60-808 from Apollo Instruments, Inc. is a Laser Diode with Wavelength 808 nm, Output Power 60 W, Output Power (CW) 60 W, Threshold Current 10000 mA, Operating Current 65 A. More details for VSxx-Y-60-808 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    VSxx-Y-60-808
  • Manufacturer
    Apollo Instruments, Inc.

Applications

  • Application
    Brazing, Cladding and coating, DPSSL pumping, Fiber amplifiers, Fiber laser pumping, Hardening and heat treatment, Illumination, Marking, Material processing, Medical therapeutics, Metal cutting, Metal heating, Metal welding, Plastic cutting, Plastic weld

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    808 nm
  • Output Power
    60 W
  • Output Power (CW)
    60 W
  • Spectral Width (FWHM)
    3 to 6 nm
  • Slope Efficiency
    1.1 W/A
  • Configuration
    Vertically Stacked
  • Beam Divergence Parallel
    8 Degree
  • Beam Divergence Perpendicular
    35 Degree
  • Wavelength Tolerance
    ±3 nm
  • Emitter Width
    100 µm
  • Wavelength Temp. Coefficient
    0.28 nm/Degree C
  • Threshold Current :
    10000 mA
  • Operating Current
    65 A
  • Operating Voltage
    2 V
  • Bar Configuration
    Vertical Stack
  • Cooling Method
    Active Cooled
  • No. of Bars
    2 to 25
  • Laser Diode Bar
    Yes
  • Polarization
    TE/TM
  • Package Type
    Bar
  • Stack/Array
    Vertically Stacked

Temperature

  • Operating Temperature
    15 to 35 Degree C
  • Storage Temperature
    -40 to 60 Degree C
