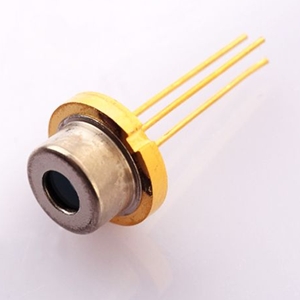

685nm SM Red Laser Diode

Laser Diode by Berlin Lasers
Request Quote

Note: Your Quotation Request will be directed to Berlin Lasers.

The 685nm SM Red Laser Diode from Berlin Lasers is a Laser Diode with Wavelength 685 nm, Output Power 35 mW, Output Power 35 mW, Threshold Current <45 mA, Operating Current <90 mA. More details for 685nm SM Red Laser Diode can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    685nm SM Red Laser Diode
  • Manufacturer
    Berlin Lasers
  • Description
    685 nm Single Mode Red Laser Diode

Applications

  • Application
    Industrial, Biomedical, Military Defense, Scientific

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    685 nm
  • Output Power
    35 mW
  • Output Power
    35 mW
  • Spectral Width (FWHM)
    <10 nm
  • Slope Efficiency
    >0.38 mW/mA
  • Beam Divergence Parallel
    <8.5 Degree
  • Beam Divergence Perpendicular
    <19 Degree
  • Wavelength Tolerance
    ±10 nm
  • Transverse Mode
    TE
  • Wavelength Temp. Coefficient
    0.2 nm/Degree C
  • Threshold Current :
    <45 mA
  • Operating Current
    <90 mA
  • Operating Current
    <90 mA
  • Operating Voltage
    <2.5 V
  • Laser Color
    Red
  • Fiber Modes
    Single Mode
  • Package Type
    TO-Can
  • Package
    TO-18

Temperature

  • Operating Temperature
    -10 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C
