MM LD-975-2000

Laser Diode by Berlin Lasers
Request Quote

Note: Your Quotation Request will be directed to Berlin Lasers.

The MM LD-975-2000 from Berlin Lasers is a Laser Diode with Wavelength 975 nm, Output Power 2000 mW, Output Power 2000 mW, Threshold Current <0.5 A, Operating Current <2.56 A. More details for MM LD-975-2000 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MM LD-975-2000
  • Manufacturer
    Berlin Lasers
  • Description

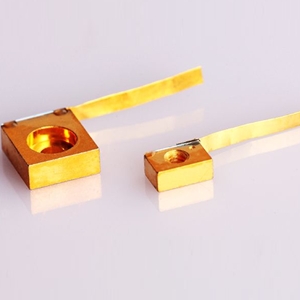

    975 nm Multimode Infrared Laser Diode in C-Mount package

Applications

  • Application
    Laser Pointers, Infrared Laser Source Equipment, High Precision Measuring, Laser Module, Diode Laser Equipment, Medical Instrument, Aerospace Applications

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    975 nm
  • Output Power
    2000 mW
  • Output Power
    2000 mW
  • Slope Efficiency
    >0.9 W/A
  • Beam Divergence Parallel
    <10 Degree
  • Beam Divergence Perpendicular
    <40 Degree
  • Wavelength Tolerance
    ±10 nm
  • Transverse Mode
    TE
  • Wavelength Temp. Coefficient
    0.4 nm/Degree C
  • Threshold Current :
    <0.5 A
  • Operating Current
    <2.56 A
  • Operating Current
    <2.56 A
  • Operating Voltage
    <2 V
  • Laser Color
    Infrared
  • Fiber Modes
    Multi-Mode
  • Package Type
    C-Mount
  • Package
    C-Mount

Temperature

  • Operating Temperature
    -0 to 35 Degree C
  • Storage Temperature
    -10 to 60 Degree C
