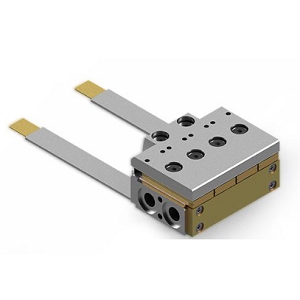

E2Y-808.3-240C -1x4

Laser Diode by BWT BEIJING
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to BWT BEIJING.

The E2Y-808.3-240C -1x4 from BWT BEIJING is a Laser Diode with Wavelength 808 nm (Central), Output Power 60 W, Output Power 60 W, Output Power (CW) 60 W, Threshold Current <20 A. More details for E2Y-808.3-240C -1x4 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    E2Y-808.3-240C -1x4
  • Manufacturer
    BWT BEIJING
  • Description
    808nm, Micro Channel Cooled Horizontal Stack

Applications

  • Application
    Pumping, Medical, Scientific Research, Material Processing

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    808 nm (Central)
  • Output Power
    60 W
  • Output Power
    60 W
  • Output Power (CW)
    60 W
  • Spectral Width (FWHM)
    <5 nm
  • Slope Efficiency
    >4.4 W/A
  • Configuration
    Stack
  • Beam Divergence
    60 to 70 Degree (Parallel), 8 to 12 Degree (Perpendicular)
  • Beam Divergence Parallel
    60 to 70 Degree
  • Beam Divergence Perpendicular
    8 to 12 Degree
  • Wavelength Tolerance
    ±3 nm
  • Power Conversion Efficiency
    >50%
  • Threshold Current :
    <20 A
  • Operating Current
    <70 A
  • Operating Current
    <70 A
  • Operating Voltage
    <2 V
  • Bar Configuration
    Horizontally Stack
  • Cooling Method
    Water-Cooled
  • No. of Bars
    1 to 4
  • Package Type
    Bar
  • Package
    Bar
  • Stack/Array
    Horizontally Stack

Temperature

  • Operating Temperature
    20 to 30 Degree C
  • Storage Temperature
    0 to 55 Degree C
