K405EMSCN-50.00WN1N-40022

Laser Diode by BWT BEIJING
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to BWT BEIJING.

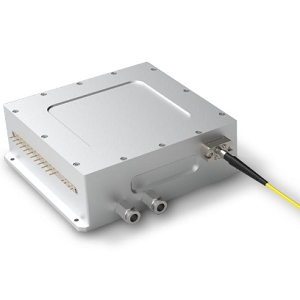

The K405EMSCN-50.00WN1N-40022 from BWT BEIJING is a Laser Diode with Wavelength 405 nm (Center), Output Power 50 W, Output Power 50 W, Output Power (CW) 50 W, Threshold Current 0.11 A. More details for K405EMSCN-50.00WN1N-40022 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    K405EMSCN-50.00WN1N-40022
  • Manufacturer
    BWT BEIJING
  • Description
    405nm, 50W Fiber Coupled Diode Laser

Applications

  • Application
    Laser Direct Writing, Biological Detection, 3D Printing

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    405 nm (Center)
  • Output Power
    50 W
  • Output Power
    50 W
  • Output Power (CW)
    50 W
  • Wavelength Tolerance
    ±5 nm
  • Threshold Current :
    0.11 A
  • Operating Current
    0.5 to 0.54 A
  • Operating Current
    0.5 to 0.54 A
  • Operating Voltage
    60 V (Per module)
  • Cooling Method
    Water-Cooled
  • Numerical Aperture
    0.22
  • Lead Soldering Temperature
    260 Degree C
  • Package Type
    Fiber Pigtailed
  • Package
    Fiber Pigtailed
  • Relative Humidity
    15 to 75% RH

Physical Properties

  • Fiber core diameter
    400 µm
  • Fiber length
    2 m

Connections & Interface

  • Connector
    Pluggable SMA905

Temperature

  • Operating Temperature
    15 to 35 Degree C
  • Storage Temperature
    -20 to 70 Degree C
