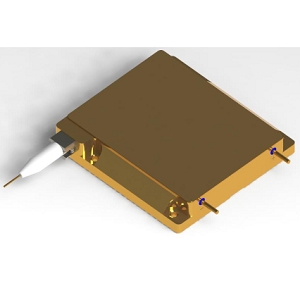

K808DL9RN-150.0W

Laser Diode by BWT BEIJING
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to BWT BEIJING.

The K808DL9RN-150.0W from BWT BEIJING is a Laser Diode with Wavelength 808 nm (Center), Output Power 150 W, Output Power 150 W, Output Power (CW) 150 W, Threshold Current 1.5 A. More details for K808DL9RN-150.0W can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    K808DL9RN-150.0W
  • Manufacturer
    BWT BEIJING
  • Description
    808nm, 150W Fiber Coupled Diode Laser

Applications

  • Application
    Solid-state laser pumping, Medical, Material processing

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    808 nm (Center)
  • Output Power
    150 W
  • Output Power
    150 W
  • Output Power (CW)
    150 W
  • Spectral Width (FWHM)
    6 nm
  • Slope Efficiency
    16 W/A
  • Wavelength Tolerance
    ±3 nm
  • Wavelength Temp. Coefficient
    0.3 nm/Degree C
  • Threshold Current :
    1.5 A
  • Operating Current
    11 A
  • Operating Current
    11 A
  • Operating Voltage
    36 V
  • Numerical Aperture
    0.22
  • Lead Soldering Temperature
    260 Degree C
  • Package Type
    Fiber Pigtailed
  • Package
    Fiber Pigtailed
  • Relative Humidity
    15 to 75% RH

Physical Properties

  • Fiber core diameter
    200 µm, 400 µm
  • Fiber length
    2 m

Temperature

  • Operating Temperature
    15 to 35 Degree C
  • Storage Temperature
    -20 to 70 Degree C
