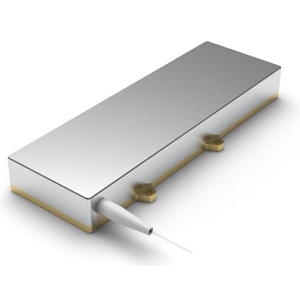

K976BNERN-530.0WN0N-20022F20FFF

Laser Diode by BWT BEIJING
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to BWT BEIJING.

The K976BNERN-530.0WN0N-20022F20FFF from BWT BEIJING is a Laser Diode with Wavelength 976 nm (Center), Output Power 530 W, Output Power 530 W, Output Power (CW) 530 W, Threshold Current 1.1 A. More details for K976BNERN-530.0WN0N-20022F20FFF can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    K976BNERN-530.0WN0N-20022F20FFF
  • Manufacturer
    BWT BEIJING
  • Description
    976nm, 530W Wavelength Stabilized High Power Fiber Coupled Diode Laser

Applications

  • Application
    Fiber laser pumping

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    976 nm (Center)
  • Output Power
    530 W
  • Output Power
    530 W
  • Output Power (CW)
    530 W
  • Spectral Width (FWHM)
    0.7 nm
  • Slope Efficiency
    20.5 W/A
  • Wavelength Tolerance
    ±1 nm
  • Wavelength Temp. Coefficient
    0.02 nm/Degree C
  • Threshold Current :
    1.1 A
  • Operating Current
    27.5 to 29 A
  • Operating Current
    27.5 to 29 A
  • Operating Voltage
    43.5 to 47 V
  • Numerical Aperture
    0.22
  • Lead Soldering Temperature
    260 Degree C
  • Package Type
    Fiber Pigtailed
  • Package
    Fiber Pigtailed
  • Relative Humidity
    15 to 75% RH

Physical Properties

  • Fiber core diameter
    200 µm
  • Fiber length
    2 m
  • Weight
    700 g

Temperature

  • Operating Temperature
    20 to 30 Degree C
  • Storage Temperature
    -20 to 70 Degree C
