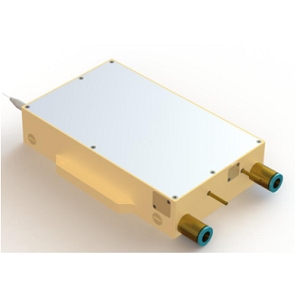

K976DGLRN-1000.0W

Laser Diode by BWT BEIJING
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to BWT BEIJING.

The K976DGLRN-1000.0W from BWT BEIJING is a Laser Diode with Wavelength 976 nm (Center), Output Power 980 to 1000 W, Output Power 980 to 1000 W, Output Power (CW) 980 to 1000 W, Threshold Current 1.5 A. More details for K976DGLRN-1000.0W can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    K976DGLRN-1000.0W
  • Manufacturer
    BWT BEIJING
  • Description
    976nm, 1000W Lightweight high power fiber coupled diode laser

Applications

  • Application
    Fiber laser pumping, Scientific research

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    976 nm (Center)
  • Output Power
    980 to 1000 W
  • Output Power
    980 to 1000 W
  • Output Power (CW)
    980 to 1000 W
  • Spectral Width (FWHM)
    5 nm
  • Slope Efficiency
    33 W/A
  • Wavelength Tolerance
    ±3 nm
  • Wavelength Temp. Coefficient
    0.3 nm/Degree C
  • Power Conversion Efficiency
    43 to 45%
  • Threshold Current :
    1.5 A
  • Operating Current
    30 to 33 A
  • Operating Current
    30 to 33 A
  • Operating Voltage
    68 to 69 V
  • Numerical Aperture
    0.22
  • Lead Soldering Temperature
    260 Degree C
  • Package Type
    Fiber Pigtailed
  • Package
    Fiber Pigtailed
  • Relative Humidity
    15 to 75% RH

Physical Properties

  • Fiber core diameter
    220 µm
  • Fiber length
    2 m

Temperature

  • Operating Temperature
    20 to 30 Degree C
  • Storage Temperature
    -40 to 80 Degree C
