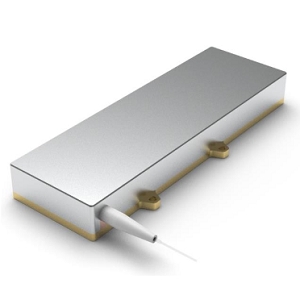

K976DNERN-700.0WN0N-20022F20ENA

Laser Diode by BWT BEIJING
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to BWT BEIJING.

The K976DNERN-700.0WN0N-20022F20ENA from BWT BEIJING is a Laser Diode with Wavelength 976 nm (Center), Output Power 700 W, Output Power 700 W, Output Power (CW) 700 W, Threshold Current 1.5 A. More details for K976DNERN-700.0WN0N-20022F20ENA can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    K976DNERN-700.0WN0N-20022F20ENA
  • Manufacturer
    BWT BEIJING
  • Description
    976nm, 700W High Power Fiber Coupled Diode Laser

Applications

  • Application
    Fiber laser pumping

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    976 nm (Center)
  • Output Power
    700 W
  • Output Power
    700 W
  • Output Power (CW)
    700 W
  • Spectral Width (FWHM)
    6 nm
  • Slope Efficiency
    24.5 W/A
  • Wavelength Tolerance
    ±3 nm
  • Wavelength Temp. Coefficient
    0.3 nm/Degree C
  • Threshold Current :
    1.5 A
  • Operating Current
    30 to 31 A
  • Operating Current
    30 to 31 A
  • Operating Voltage
    45.6 to 47 V
  • Numerical Aperture
    0.22
  • Lead Soldering Temperature
    260 Degree C
  • Package Type
    Fiber Pigtailed
  • Package
    Fiber Pigtailed
  • Relative Humidity
    15 to 75% RH

Physical Properties

  • Fiber core diameter
    200 µm
  • Fiber length
    2 m

Temperature

  • Operating Temperature
    20 to 30 Degree C
  • Storage Temperature
    -20 to 70 Degree C
