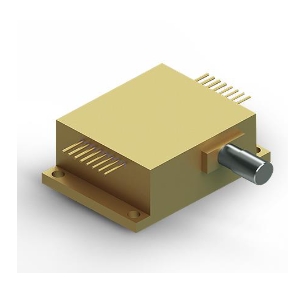

KA64HAMCA-20.00W

Laser Diode by BWT BEIJING
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to BWT BEIJING.

The KA64HAMCA-20.00W from BWT BEIJING is a Laser Diode with Wavelength 1064 nm (Center), Output Power 20 W, Output Power 20 W, Output Power (CW) 20 W, Threshold Current 0.9 A. More details for KA64HAMCA-20.00W can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    KA64HAMCA-20.00W
  • Manufacturer
    BWT BEIJING
  • Description
    1064nm, 20W Multi-Function Detachable Diode Laser

Applications

  • Application
    Cosmetology, Physiotherapy, Surgery, Dentistry, Medical, Scientific research

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1064 nm (Center)
  • Output Power
    20 W
  • Output Power
    20 W
  • Output Power (CW)
    20 W
  • Spectral Width (FWHM)
    12 nm
  • Slope Efficiency
    2.7 W/A
  • Wavelength Tolerance
    ±20 nm
  • Wavelength Temp. Coefficient
    0.3 nm/Degree C
  • Threshold Current :
    0.9 A
  • Forward Current(PD)
    300 to 3000 µA
  • Operating Current
    10 A
  • Operating Current
    10 A
  • Operating Voltage
    7 V
  • Thermistor Resistance
    10 kOhms
  • Numerical Aperture
    0.22
  • Lead Soldering Temperature
    260 Degree C
  • Package Type
    Fiber Detachable
  • Package
    Fiber Detachable
  • Relative Humidity
    15 to 75% RH

Physical Properties

  • Fiber core diameter
    200 µm

Connections & Interface

  • Connector
    SMA905

Temperature

  • Operating Temperature
    15 to 35 Degree C
  • Storage Temperature
    -20 to 70 Degree C
