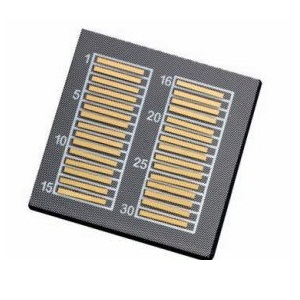

100W 18FFx4 mm

Laser Diode by Coherent Corp.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Coherent Corp..

The 100W 18FFx4 mm from Coherent Corp. is a Laser Diode with Wavelength 965 to 985 nm, Output Power 100 W, Output Power 100 W, Threshold Current 8 A, Operating Current 110 to 120 A. More details for 100W 18FFx4 mm can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    100W 18FFx4 mm
  • Manufacturer
    Coherent Corp.
  • Description
    Unmounted Diode Laser Bars (UMBs), 965-985 nm

General Parameters

  • Type
    Free Space Laser Diode
  • Wavelength
    965 to 985 nm
  • Output Power
    100 W
  • Output Power
    100 W
  • Configuration
    Multi-Emitter, Single Bar
  • Beam Divergence Parallel
    10 Degree
  • Beam Divergence Perpendicular
    31 Degree
  • Wavelength Tolerance
    ±10 nm
  • Emitter Width
    90 µm
  • Transverse Mode
    TE
  • Wavelength Temp. Coefficient
    0.4 nm/Degree C
  • Threshold Current :
    8 A
  • Operating Current
    110 to 120 A
  • Operating Current
    110 to 120 A
  • Operating Voltage
    1.5 to 1.7 V
  • Number of Emitters
    19
  • Package Type
    Bar
  • Stack/Array
    Single Bar
