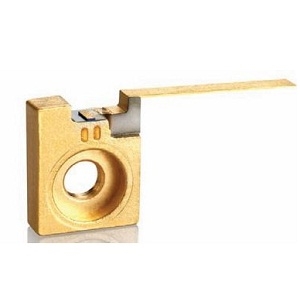

7W 200 µm

Laser Diode by Coherent Corp.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Coherent Corp..

The 7W 200 µm from Coherent Corp. is a Laser Diode with Wavelength 780 to 830 nm, Output Power 7 W, Output Power 7 W, Threshold Current 1.1 A, Operating Current 8 to 8.5 A. More details for 7W 200 µm can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    7W 200 µm
  • Manufacturer
    Coherent Corp.
  • Description
    Single Emitter Diode Lasers

General Parameters

  • Type
    Free Space Laser Diode
  • Wavelength
    780 to 830 nm
  • Output Power
    7 W
  • Output Power
    7 W
  • Spectral Width (FWHM)
    3 nm
  • Configuration
    Single-Emitter Array/Stack
  • Beam Divergence Parallel
    10 Degree
  • Beam Divergence Perpendicular
    29 Degree
  • Wavelength Tolerance
    ±3 nm
  • Emitter Width
    200 µm
  • Transverse Mode
    TM
  • Wavelength Temp. Coefficient
    0.28 nm/Degree C
  • Threshold Current :
    1.1 A
  • Operating Current
    8 to 8.5 A
  • Operating Current
    8 to 8.5 A
  • Operating Voltage
    2 V
  • Package Type
    C-Mount
  • Stack/Array
    Array/Stack

Temperature

  • Operating Temperature
    15 to 40 Degree C
  • Storage Temperature
    -40 to 60 Degree C
