CM97-1000-76PM

Laser Diode by Coherent Corp.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Coherent Corp..

The CM97-1000-76PM from Coherent Corp. is a Laser Diode with Wavelength 975 nm, 976 nm, 977 nm, Output Power 910 mW, Output Power 910 mW, Threshold Current 60 to 80 mA, Operating Current 1360 mA. More details for CM97-1000-76PM can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CM97-1000-76PM
  • Manufacturer
    Coherent Corp.
  • Description

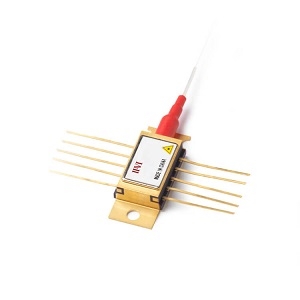

    976nm Mini-Butterfly Laser Diode Pump Module with FBG and PM Fiber

Applications

  • Application
    Fiber lasers, Sensing, EDFA

General Parameters

  • Technology
    Fiber-Bragg-Grating (FBG)
  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    975 nm, 976 nm, 977 nm
  • Output Power
    910 mW
  • Output Power
    910 mW
  • Spectral Width (FWHM)
    0.2 to 1 nm
  • Polarization Extinction Ratio
    13 dB
  • Threshold Current :
    60 to 80 mA
  • Operating Current
    1360 mA
  • Operating Current
    1360 mA
  • Operating Voltage
    2 to 2.2 V
  • Thermistor Resistance
    9.5 to 10.5 kOhms
  • Laser Color
    Infrared
  • Fiber Modes
    Polarization Maintaining, Single Mode
  • Photo Diode Dark Current
    50 nA
  • Lead Soldering Temperature
    350 Degree C
  • Package Type
    Butterfly
  • Package
    Hermetically sealed 10-pin mini- butterfly package
  • Note
    Kink free current: 1500 mA, Kink free power: 1000 mW

Physical Properties

  • Fiber core diameter
    5.6 to 7.6 µm
  • Fiber length
    2.1 m
  • RoHS
    Yes

Temperature

  • Storage Temperature
    -40 to 85 Degree C
