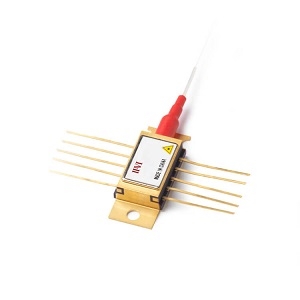

CMDFB1064A

Laser Diode by Coherent Corp.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Coherent Corp..

The CMDFB1064A from Coherent Corp. is a Laser Diode with Wavelength 1061.5 nm, 1063.5 nm, 1065.5 nm, Output Power 150 to 200 mW, Output Power 150 to 200 mW, Threshold Current 15 to 70 mA, Operating Current 400 mA. More details for CMDFB1064A can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CMDFB1064A
  • Manufacturer
    Coherent Corp.
  • Description
    Wavelength Stabilized 1064nm / 1030nm High Power Mini-Butterfly DFB Laser Diode Module

Applications

  • Application
    Fiber laser systems, Frequency conversion, Spectroscopy

General Parameters

  • Technology
    Distributed Feedback (DFB)
  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser, Pulsed Laser
  • Wavelength
    1061.5 nm, 1063.5 nm, 1065.5 nm
  • Output Power
    150 to 200 mW
  • Output Power
    150 to 200 mW
  • Pulse Duration
    10 to 200 ns
  • Threshold Current :
    15 to 70 mA
  • Reverse Voltage
    2 V
  • Operating Current
    400 mA
  • Operating Current
    400 mA
  • Operating Voltage
    2 to 2.5 V
  • Capacitance
    50 pF
  • Laser Color
    Infrared
  • Fiber Modes
    Polarization Maintaining, Single Mode
  • Series Resistance
    2 Ohms (Chip)
  • Lead Soldering Temperature
    350 Degree C
  • Package Type
    Butterfly
  • Package
    Mini-Butterfly
  • Note
    pulsed peak power: 300 to 400 mW, Operating pulsed peak current: 0.8 A

Physical Properties

  • Fiber core diameter
    5.6 to 7.6 µm
  • Fiber length
    1 m
  • RoHS
    Yes

Temperature

  • Storage Temperature
    -40 to 85 Degree C
