IND02L000D102

Laser Diode by Coherent Corp.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Coherent Corp..

The IND02L000D102 from Coherent Corp. is a Laser Diode with Wavelength 1273.54 nm, Threshold Current 5 to 17 mA, Operating Current 60 to 80 mA, Operating Current 60 to 80 mA, Operating Voltage 1.6 V. More details for IND02L000D102 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    IND02L000D102
  • Manufacturer
    Coherent Corp.
  • Description

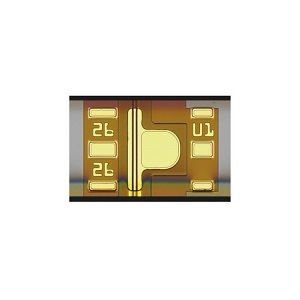

    1300nm 28 Gb/s NRZ DFB Laser Diode Chip

Applications

  • Application
    Fiber optical communication links, Gigabit Ethernet and storage area networks, 5G Wireless front-haul datalinks

General Parameters

  • Technology
    Distributed Feedback (DFB)
  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1273.54 nm
  • Slope Efficiency
    0.1 to 0.2 W/A
  • Beam Divergence Parallel
    30 Degrees
  • Beam Divergence Perpendicular
    35 Degrees
  • Wavelength Temp. Coefficient
    0.09 nm/Degree C
  • Modulation Bandwidth
    18 to 21 GHz
  • Threshold Current :
    5 to 17 mA
  • Reverse Voltage
    2 V
  • Operating Current
    60 to 80 mA
  • Operating Current
    60 to 80 mA
  • Operating Voltage
    1.6 V
  • Capacitance
    1.2 pF
  • Laser Color
    Infrared
  • Emitting Size/Emitter Chip
    250 x 150 x 85 µm (Width x Length x Thickness)
  • Series Resistance
    7 to 10 Ohms
  • Package Type
    Die, Chip
  • Relative Intensity Noise
    -132 dB/Hz
  • Note
    SMSR: 35 dB

Physical Properties

  • RoHS
    Yes

Temperature

  • Operating Temperature
    -20 to 95 Degree C
  • Storage Temperature
    -40 to 100 Degree C
